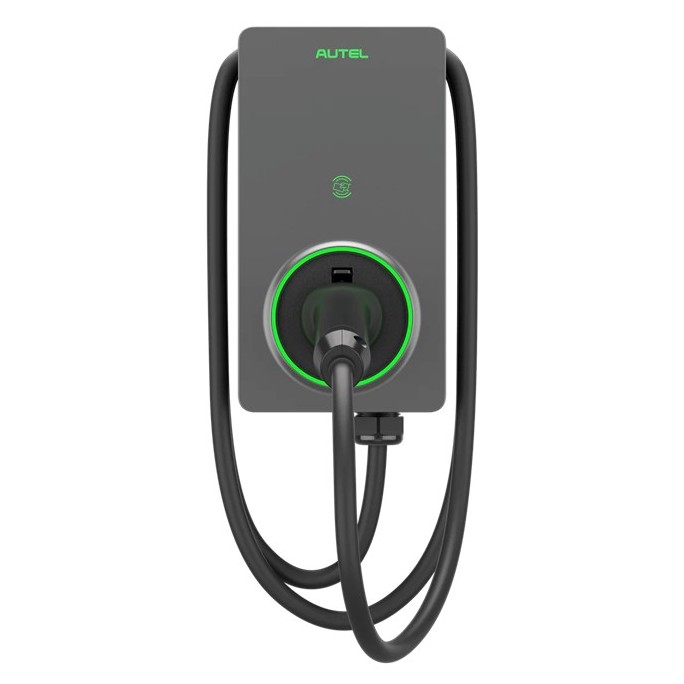

Autel AC Single | 7.4kW | Tethered 5m | WiFi Only | Non-Display
$ 95.82
Description 5‑Year Warranty (at installation): 5‑year warranty guarantee from installation. Dual OCPP Connectivity: Supports a duo OCPP connection, enabling more flexible backend connectivity for monitoring and platform requirements. Connectivity Options by Variant for Cost Effective Project Requirement: Clear variant structure for WiFi only or 4G required site settings, fulfill your project need without spending too much. User Interface & Control User Interface: LED Indicators Authentication Methods: RFID Connectivity: Wi-Fi, Bluetooth & RS485, Communication Protocols: OCPP 1.6J & OCPP 2.0.1 Mechanical & Environmental Specs Mounting: Wall-mounted or floor-mounted with pedestal Dimensions (H×W×D): 315 × 170 × 117 mm Weight: 6.3kg Enclosure Rating: IP65 (charger body), IP54 (socket & shutter versions), IK10 Installation: Indoor or outdoor Operating Temperature: -30°C to 50°C Storage Temperature: -40°C to 70°C Operating Humidity: <95%, non-condensing Operating Altitude: ≤2000 m Ambient Light Sensor: Yes Electrical Specifications (7.4kW Single-Phase) Rated Output Power: Up to 7.4 kW Input Voltage: 230V ±15%, single‑phase, 50/60 Hz Rated Current: Up to 40A Circuit Breaker Options: 1P N PE Network Types: TN, TT, IT Input Connection: Hardwired Connector Options: 5m tethered cable Electrical Specifications (22kW Three-Phase) Rated Output Power: Up to 22 kW Input Voltage: 230V ±15%, three‑phase, 50/60 Hz Rated Current: Up to 40A Circuit Breaker Options: 3P N PE Network Types: TN, TT, IT Input Connection: Hardwired Connector Options: 5m tethered cable
